Specification For T5 Led Tube Fitting |
Items |
Specifications |
Model No. |
ABC-T5-18w |
Light name |
4FT 18w T5 led tube |
Power |
18w |
Lumens |
100lm/w |
Voltage(Input) |
AC85-265V |
Size |
D26*L1149mm |
Led type |
Epistar (Taiwan) |
Led quantity |
SMD2835 96pcs |
Lumens |
1600-2400lm |
CRI |
Ra>70,Ra>80,Ra>90 |
Beam Angle |
150degrees |

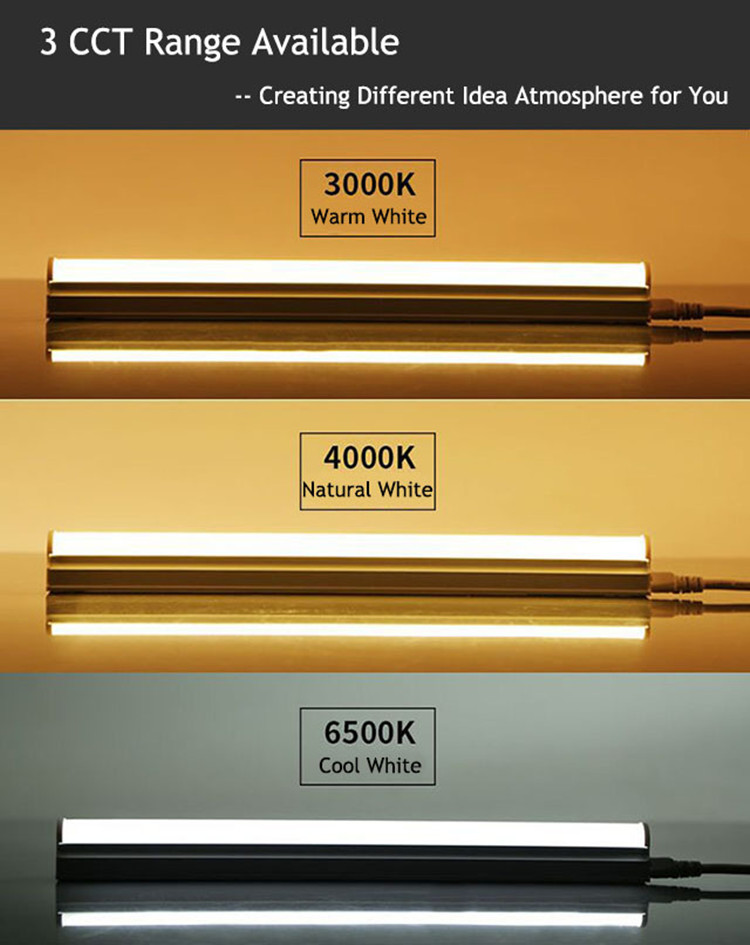

Color Temperature |
ww(2700-3500K) NW(4000-5000K) CW(6000-6500k) |
Material |
6063 aluminum + PC |
Driver Mode |
constant current driver with IC |
IP rating |
IP40 |
Packing info |
40pcs/CTN GW:12kg/CTN Size: 125*21*21cm |
Lamp socket |
G5 t8 led tube |
Working Life |
50000Hours |
Certificates |
CE, RoHS |
Working Temp. |
-20-50 °C |
Warranty |
2 years |
Application |
shopping mall,commercial lighting,indoor lighting |
MOQ |
40pcs,welcome sample order |
Capacity | 100000pcs/month |
Sample time | within 3working days |
Payment terms | 30% deposit in advance, 70% before shipment |
Payment methods | T/T, Western Union, Paypal, L/C |
QC Control | 100% testing before packing, rechecked before shipping |
After-sale services | Promise 24 hrs reply and free charge exchange goods |
T5 Led Tube Fitting VS Traditional Tube Light |
8W led tube | 800Lm | = | traditional 25W tube | = | 16W CFL bulb |
12W led tube | 1210Lm | = | traditional 30W tube | = | 20W CFL bulb |
18w led tube | 1850Lm | = | traditional 45W tube | = | 30W CFL bulb |
22w led tube | 2250Lm | = | traditional 60W tube | = | 40W CFL bulb |
24w led tube | 2580Lm | = | traditional 60W tube | = | 50W CFL bulb |
Features For T5 Led Tube Fitting |
1. Aluminum Base: Use high-end aluminum profile for better heat dissipation
2. Driver: high effiency, PF: >0.95, 3years warranty,light start no delay,no stroboscopic,ensure T8 Led Tube Light a long lifespan.
3. Lamp body:high heat dissipation,low thermal resistance,long life span,resistance to voltage ect
4. SMD2835 Chip: Epistar 2835smd, 0.2w/pcs, more brighter and with good heat dissipation.
5. PC cover:High-end PC cover with nice light transmittance(>85%).Transparent PC and milk PC are optional
Applications For T5 Led Tube Fitting |
1. Hotels,Conference,Meeting rooms, Schools,hospital
2. Factories,Offices,Commercial Complexes
3. Residential, Institution Buildings
4. Public buildings, hosing and the underground garage
5. Frozen ark of the supermarket (no pollution to food)
Shipping For T5 Led Tube Fitting |
1.Delivery Time: For Sample orde:within 3days;
For 100~500pcs: 3-5 days
For 500~1000pcs:5-7days .
2.Shipping Way :By UPS/DHL/FEDEX/TNT: 3~ 5 days except Sunday
By air 5-7days except Sunday.
By sea takes one month except Sunday.
