Specification For Led Stair Light IP67 |
| Modle | ABC-TJD-1W | ABC-TJD-3W | ABC-TJD-5W | ABC-TJD-7W |
| Wattage | 1-2W | 1-3W | 1-5W | 1-7W |
| Lumen | 200lm | 300lm | 500lm | 700lm |
| Size | Outer:145*70*55MM |
Outer:165*100*65MM | Outer:225*125*100MM | Outer:270*140*115MM |
| Chip Brand | Epistar or Bridgelux chip | |||
| CCT | Warm white ( 2700-3500K ) Nature White (4000-4500K ) Pure white ( 5000-5500K ) Cool White (6000-6500K ) | |||
| Voltage | AC85-265V | |||
| Beam Angle | 90° 120° 150° | |||
| Power factor | PF>0.95 | |||
| CRI | CRI>70Ra CRI>80Ra CRI>85Ra ( For Option ) | |||
| Material | Stain Steel 304 +Aluminum +Tempered glass | |||
| Cover | No Cover | |||
| Certificate | CE,RoHS,LVD,EMC,TUV,SAA | |||
| Warranty | 2 years warranty or 3 years warranty ( For Option ) | |||
| IP Rating | IP44 | |||
| Net Weight | 0.40KG | 0.50KG | 0.60KG | 0.80KG |
|
Details For Led Stair Light IP67 |
1. Material: cast aluminum, high light transmittance tempered glass, anti-aging silicone ring,liquid painted surface treatment, T=60-80μm.
2. Waterproof grade: IP67
3. Ambient temperature: -40 ℃ - + 50 ℃
4. Available colors: red, yellow, green, blue, purple, white, warm white, colorful
5. Green environmental protection waterproof
6. Color:White light 2700K, 4500K, 6500K, R/G/B/Amber, RGB
|
Application For Led Stair Light IP67 |

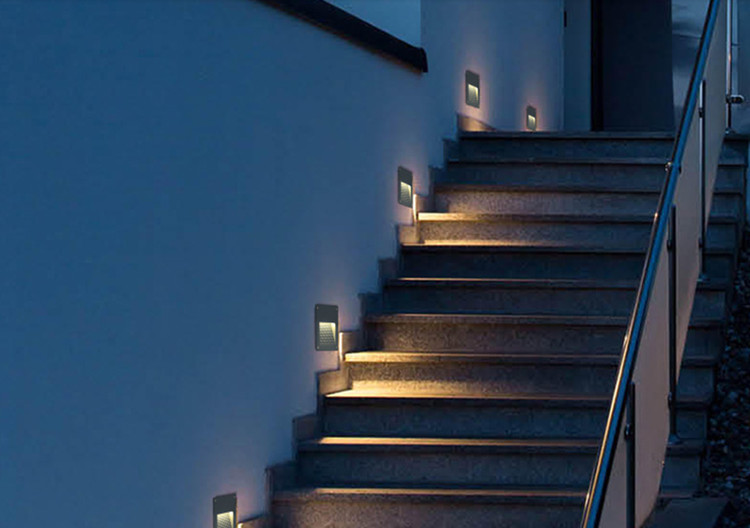

1.Widely used in Square,stairs,corridor,garden,bridge,Museum,indoor or outdoor using.
|
Shipping For Led Stair Light IP67 |
1.Delivery Time: For Sample orde:within 3days;
For 100~500pcs: 3-5 days
For 500~1000pcs:5-7days .
2.Shipping Way :By UPS/DHL/FEDEX/TNT: 3~ 5 days
By air 5-7days
By sea takes 20-25days
