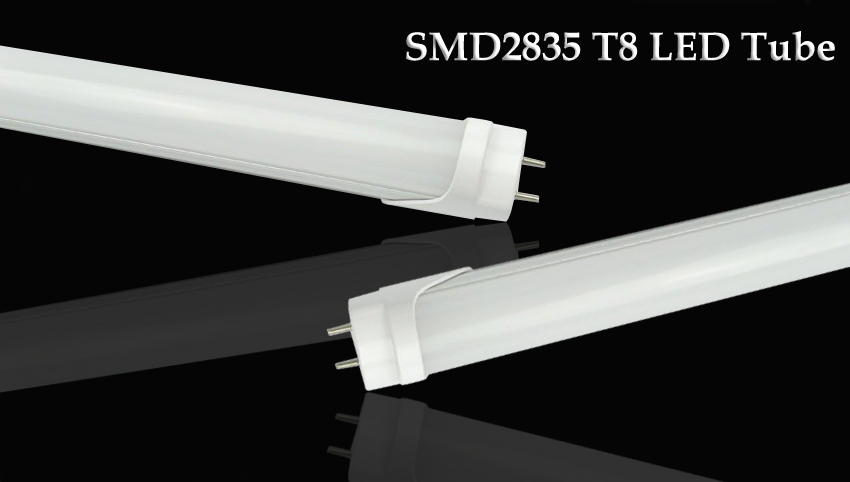

Specification For 4FT 1200MM 18W LED Tube Light Epistar Chip |
|
Items |
Specifications |
|
Model No. |
ABC-T8-18w |
|
Light name |
1200mm 18w T8 led tube |
|
Power |
18w |
|
Lumens |
100lm/w |
|
Voltage(Input) |
AC85-265V |
|
Size |
D26*L1200mm |
|
Led type |
Epistar (Taiwan) |
|
Led quantity |
Led SMD2835 100pcs |
|
Lumens |
1650lm |
|
CRI |
>75Ra |
|
Beam Angle |
180degrees |
|
Color Temperature |
ww(2700-3500K)NW(4000-5000K)CW(6000-6500k) |
|
Material |
6063 aluminum + PC |
|
Driver Mode |
constant current driver with IC |
|
IP rating |
IP44 |
|
Packing info |
25pcs/CTN GW:12kg/CTN Size: 125*21*21cm |
|

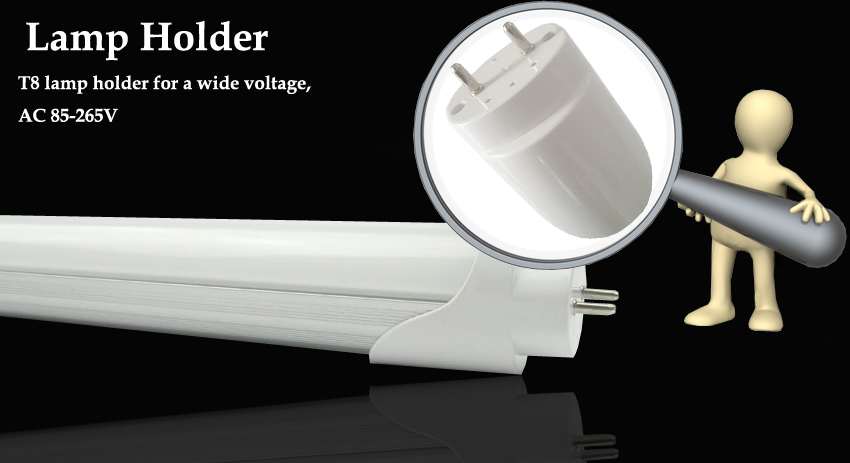

Lamp socket |
G13 t8 led tube |
|
Working Life |
50000Hours |
|
Certificates |
CE, RoHS |
|
Working Temp. |
-20-50 °C |
|
Warranty |
2 years |
|
Application |
shopping mall,commercial lighting,indoor lighting |
|
MOQ |
5pcs,welcome sample order |
| Capacity | 30000pcs/month |
| Sample time | within 3working days |
| Payment terms | 30% deposit in advance, 70% before shipment |
| Payment methods | T/T, Western Union, Paypal, L/C |
| QC Control | 100% testing before packing, rechecked before shipping |
| After-sale services | Promise 24 hrs reply and free charge exchange goods |
|
LED Tube Light VS Traditional Tube Light |
| 8W led tube | 800Lm | = | traditional 25W tube | = | 16W CFL bulb |
| 12W led tube | 1210Lm | = | traditional 30W tube | = | 20W CFL bulb |
| 18w led tube | 1850Lm | = | traditional 45W tube | = | 30W CFL bulb |
| 22w led tube | 2250Lm | = | traditional 60W tube | = | 40W CFL bulb |
| 24w led tube | 2580Lm | = | traditional 60W tube | = | 50W CFL bulb |
|
Features For Led Tube Light Epistar Chip |

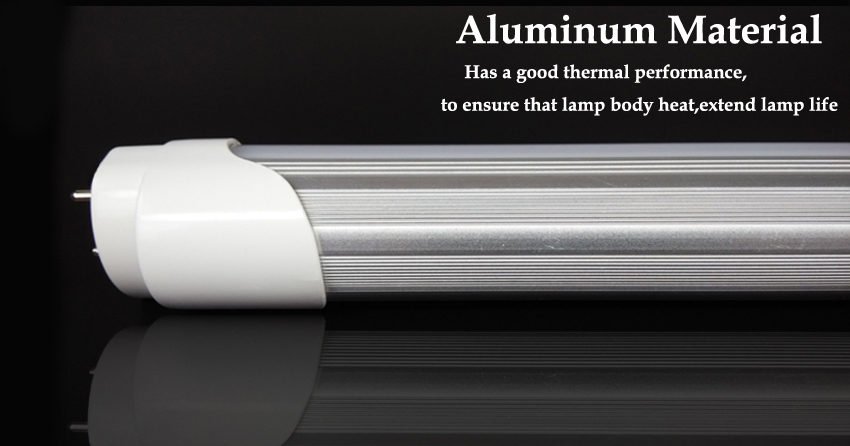

1. Aluminum Base: Use high-end aluminum profile for better heat dissipation
2. Driver: high effiency, PF: >0.95, 3years warranty,light start no delay,no stroboscopic,ensure T8 Led Tube Light a long lifespan.

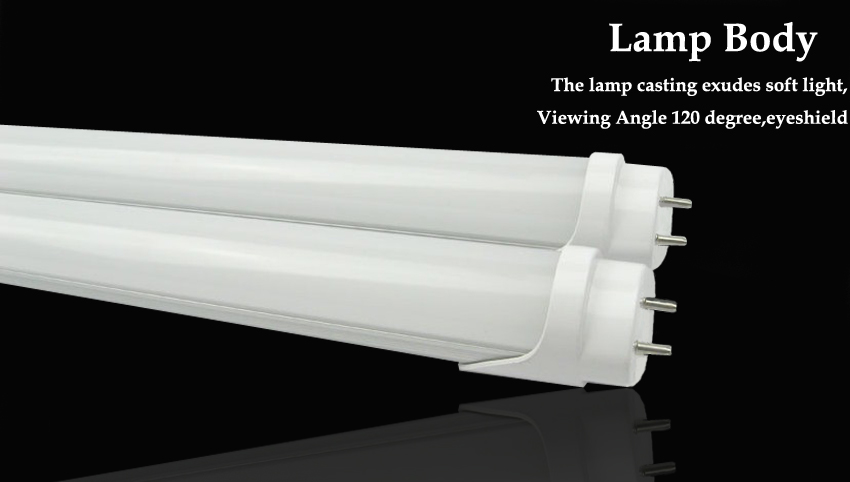

3. Lamp body:high heat dissipation,low thermal resistance,long life span,resistance to voltage ect

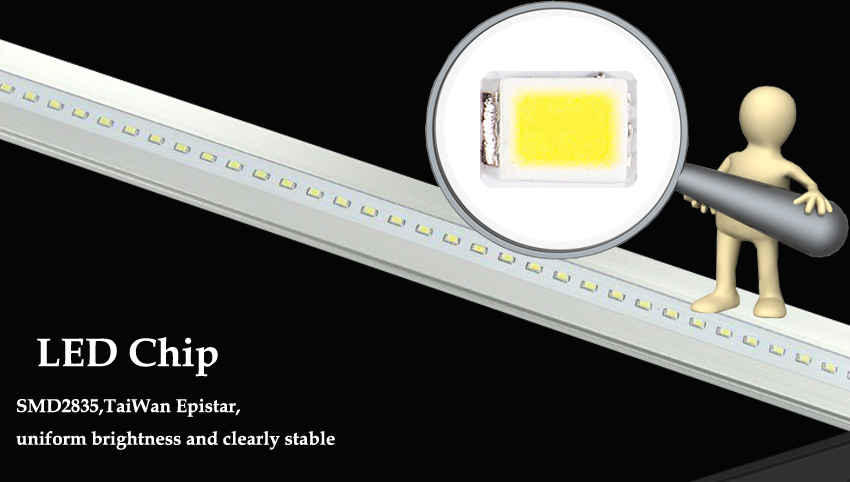

4. SMD2835 Chip: Epistar 2835smd, 0.2w/pcs, more brighter and with good heat dissipation.
5. PC cover:High-end PC cover with nice light transmittance(>85%).Transparent PC and milk PC are optional
|
Applications For Led Tube Light Epistar Chip |
1. Hotels,Conference,Meeting rooms, Schools,hospital
2. Factories,Production Area,Warehouse,Offices,Commercial Complexes
3. Residential, Institution Buildings,Retail store display lighting
4. Public buildings,parking garges,transportation, hosing and the underground garage
5. Coolers,Freezers&Damp Locations of the supermarket (no pollution to food)
6. Undercabniet Lighting,General & Street Sign Backlighting
|
Shipping For Led Tube Light Epistar Chip |
1.Delivery Time: For Sample orde:within 3days;
For 100~500pcs: 3-5 days
For 500~1000pcs:5-7days .
2.Shipping Way :By UPS/DHL/FEDEX/TNT: 3~ 5 days except Sunday
By air 5-7days except Sunday.
By sea takes one month except Sunday.
