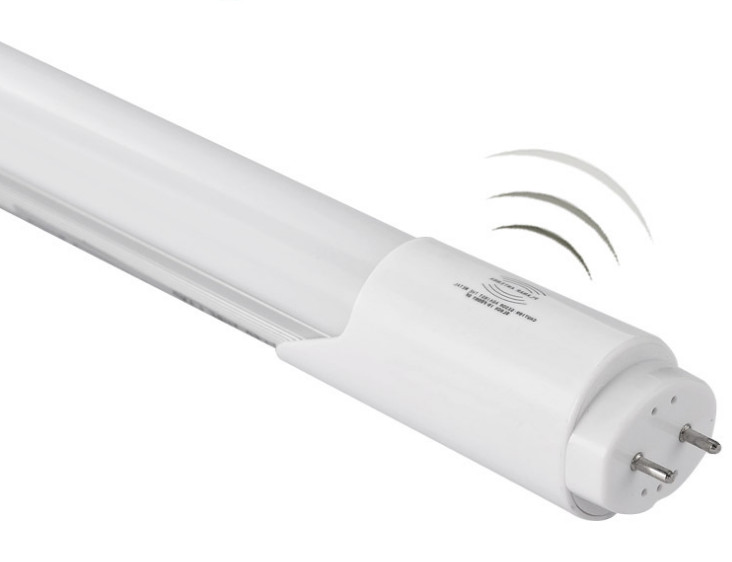

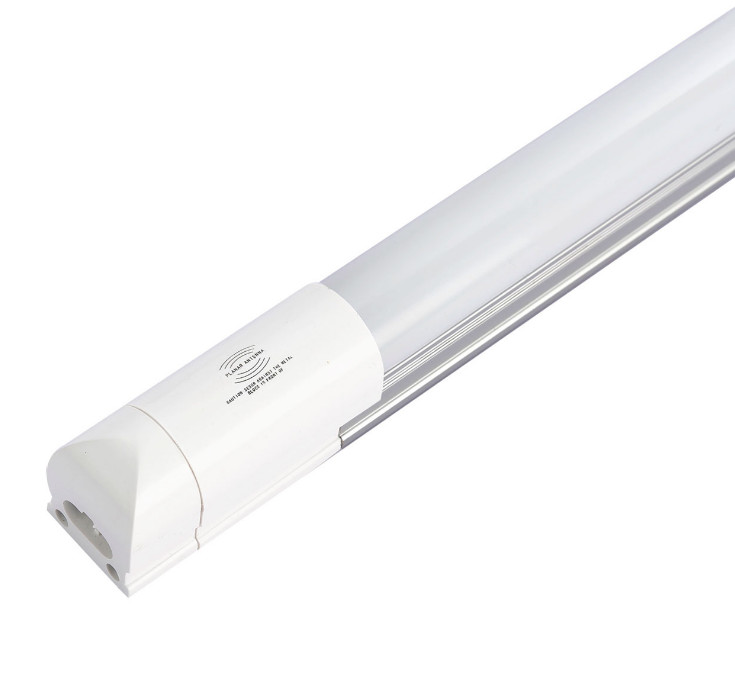

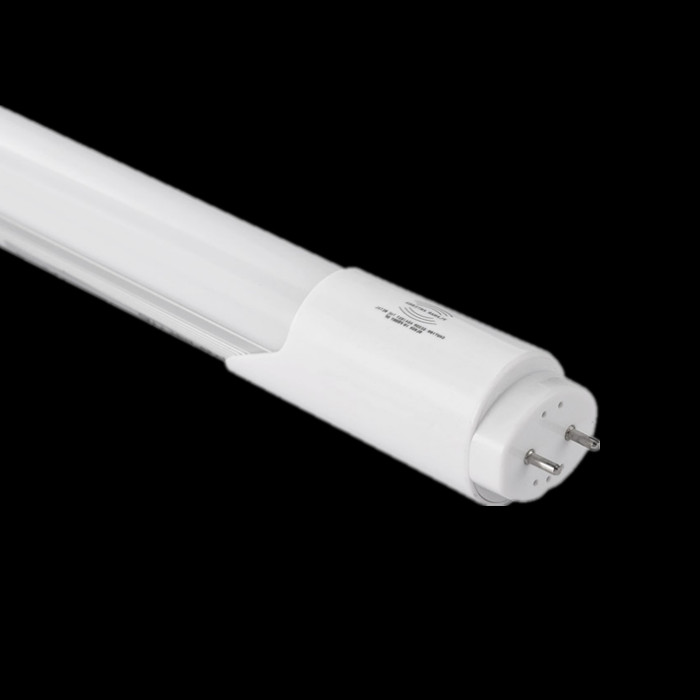

T8 Microwave Radar Sensor Led Tube Light

A Best China Lighting Co., Ltd.

Product Name:

T8 Microwave Radar Sensor Led Tube Light

Model :

ABC-LDT8-18W

Product Description:

Specification For T8 Microwave Radar Sensor Led Tube Light

Items	Specifications
Model No.	ABC-LDT8-18W
Light name	FA8 single pin T8 Led tube light
Power	32w 34W 35W 36w 38w 40W for option
Lumens	100-140lm/w
Voltage(Input)	AC85-265V
Size	D26*L2400mm ( 2387MM Pin to Pin )
Led type	Epistar (Taiwan)
Led quantity	Led SMD2835 2*192pcs
Lumens	3200-5050lm
CRI	Ra>70 or Ra>80 or Ra>90
Beam Angle	150degrees
Color Temperature	WW(2700-3500K) NW(4000-4500K) PW(5000-5500K) CW(6000-6500k)
Material	6063 aluminum + PC
Driver Mode	constant current driver with IC
IP rating	IP44
Packing info	25pcs/CTN GW:20.5kg/CTN Size:2452121cm
Lamp socket	FA8
Working Life	50000Hours
Certificates	CE, RoHS,LVD,EMC,FCC
Working Temp.	-20-50 °C
Warranty	2 years

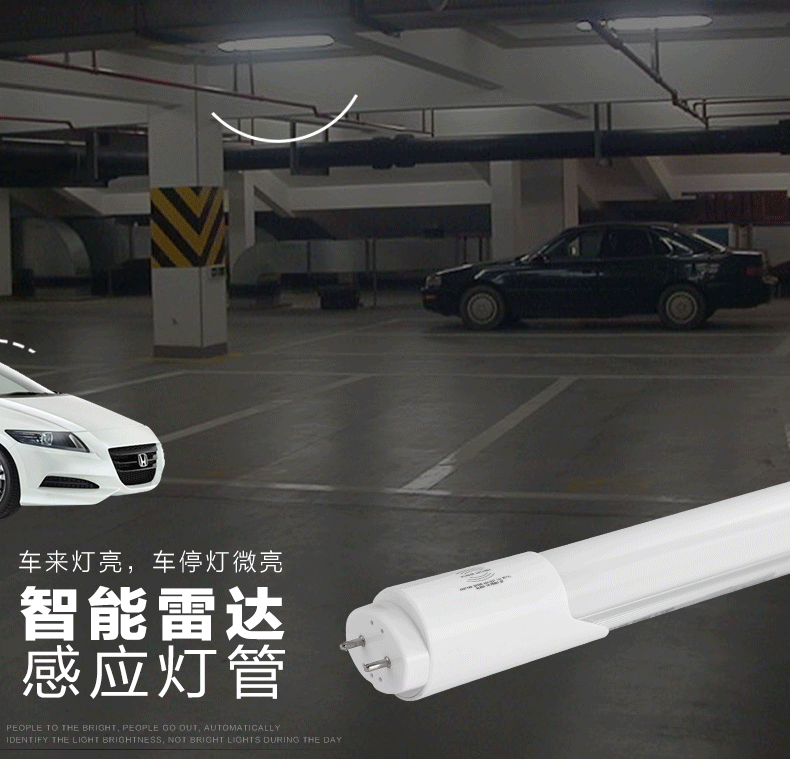

Application	packing lots,corridor,warehouse,supermarket,factory,shopping mall
MOQ	5pcs,welcome sample order
Capacity	200000pcs/month
Sample time	within 2-5working days
Payment terms	30% deposit in advance, 70% before shipment
Payment methods	T/T, Western Union, Paypal, L/C
QC Control	100% testing before packing, rechecked before shipping
After-sale services	Promise 24 hrs reply and free charge exchange goods

LED Tube Light VS T8 Microwave Radar Sensor Led Tube Light

Features For T8 Microwave Radar Sensor Led Tube Light

1. Aluminum Base: Use high-end aluminum profile for better heat dissipation

2. Driver: high effiency, PF: >0.95, 3years warranty,light start no delay,no stroboscopic,ensure T8 Led Tube Light a long lifespan.

3. Lamp body:high heat dissipation,low thermal resistance,long life span,resistance to voltage ect

4. SMD2835 Chip: Epistar 2835smd, 0.2w/pcs, more brighter and with good heat dissipation.

5. PC cover:High-end PC cover with nice light transmittance(>85%).Transparent PC and milk PC are optional

Working Principle For T8 Microwave Radar Sensor Led Tube Light

Items	Radar sensor led tube	Infrared sensor led tube	Normal led tube
Principle	Doppler effect principle	Human pyroelectric infrared	None
Sensitive detector	Microwave transmitter receiver	Human pyroelectric infrared receiver	None
How to induct	People or car's moving	The temperature of people or animal	None
Detection index	The degree of interference Microwave signal by Moving object	The difference between the body temperature and ambient temperature	None
Lighting status	Lighting when object moving and dormancy when object left or static	Lighting when object moving and dormancy when object left or static	always lighting
Power	16W when lighting and 3W or 0.3W when dormancy	16W when lighting and 3W or 0.3W when dormancy	Always 16W
Average power	5W (If lighting 4hrs and dormancy 20hrs per day)	5W (If lighting 4hrs and dormancy 20hrs per day)	16W
Energy saving	90% (compare with 40W fluorescent)	90% (compare with 40W fluorescent)	55%
Illumination duration	will turn dormancy in 20-30seconds	will turn dormancy in 20-30seconds	always lighting
Induction range	5-8meters	3-6meters	None
Interference Characteristics	Less interference,Unaffected by Ambient temperature	affected by Ambient temperature	None
Sensing feature	High Sensitivity Sensor	High Sensitivity Sensor	None
